If you’re looking to install a NEMA EVSE Charging Station at home or for commercial use, understanding the proper installation method is key. This guide covers essential instructions, mounting options (wall-mount, pole-mount, pedestal, and back-to-back), safety steps, and required tools. Everything here is based on manufacturer documentation and real installation practices.
Before diving into the physical installation of your EV charger, review all included technical drawings (front, plan, and connection views). These will help you follow local codes and ensure proper placement of the EVSE unit.
Wear safety glasses when working with electrical tools or wiring.
Do not connect power while making or modifying wire connections.
Always follow lockout/tagout protocols when the unit is energized.
Use only the recommended tools to ensure proper fit and torque.
The NEMA EVSE charger is built to accommodate various mounting configurations:
Wall-Mounted
Ideal for garages or exterior home walls. Requires mounting screws and wire access through walls.
Pole-Mounted
Great for open parking lots or curbside installs. Offers vertical mounting using a conduit pole and secure bracket attachments.
Pedestal
A free-standing unit for parking areas. Common in commercial or multi-unit properties.
Back-to-Back Pedestal
Enables two EV chargers on a single pedestal – perfect for high-traffic EV stations.
Each configuration follows ADA standards for accessibility and mounting clearance.
Here are the main torque settings and fasteners:
| Screw Size | Torque | Tolerance |
|---|---|---|
| 5-32 UNC | 13 in-lb | ±2 in-lb |
| 1/4-20 UNC | 30 in-lb | ±5 in-lb |
| GROUND TERM. SCREWS | 38 in-lb | ±5 in-lb |
| 3/8″ LOCKNUT | Hand Tight + ¼ Turn | – |
Tools Required:
Slotted Screwdriver (3/16” or ¼”)
Phillips #2 Screwdriver
Socket Set (7/16”, ⅜”)
Drill + wall anchors
Wire stripper, hammer, and level
To ensure safe and proper power delivery:
Wall or Pole Mounts:
Use Cu 8 AWG, rated for 75°C minimum.
Pedestal Mounts (Single or Double):
Use Cu 6 AWG, rated for 90°C minimum.
Be sure the wire is copper and properly rated for electrical code compliance.
| Item | Description | Quantity |
|---|---|---|
| 1 | Kiosk Pedestal Unit | 1 |
| 2 | Base Mounting Assembly | 1 |
| 3 | Kiosk Skirting | 1 |
| 4 | Base Mounting Template (NEMA 3R) | 1 |
| 5 | Hex Nut, ¼” SS | 12 |
| 6 | Star Washer, External Tooth, ¼” SS | 8 |
NEMA-compliant EVSE chargers are preferred for both home and commercial setups because:
They meet safety standards and ADA accessibility
Compatible with multiple mounting options
Support high-current charging (Level 2)
Work well with a NEMA 14-50 outlet, which is standard for EV setups
Power Output: Adjustable up to 50 A (12 kW); add about 37 miles/hr
Smart Connectivity: Wi‑Fi-enabled with app controls and scheduling
Flexible Setup: Capable of hardwiring or using NEMA 14‑50/NEMA 6‑50
Ideal For: Smart, future-proof home charging with app integration
Power Output: Up to 40 A (10 kW); adjustable from 16–40 A
Rugged Build: Aluminum enclosure rated IP67; proven durable in tough conditions
Simple Setup: Hardwire or use NEMA 14-50/NEMA 6-50 plug
Ideal For: Those needing a no-frills, heavy-duty charger built to last
Praise: Called a “workhorse” for reliability and durability
Charging Level: Level 2
Amperage: 40A
Plug Type: NEMA 14-50
Cable Length: 25 feet
Weatherproof: Yes (NEMA 4X rated)
Smart Features: Mobile app, scheduling, Alexa integration
ol and clean design
Plug Type: NEMA 14-50 or hardwired
Cable Length: 24 feet
Weatherproof: Yes (IP66 enclosure)
Smart Features: Wi-Fi app, energy usage tracking, load management
Power Output: Up to 50 A; Wi‑Fi/Bluetooth smart controls
Installation: Hardwired and suitable for indoor or outdoor use
Ideal For: EV drivers who want smart charging and flexible power delivery
| Brand | Model | Amperage | WiFi App? | UL Listed | Price Range |
|---|---|---|---|---|---|
| ChargePoint | Home Flex | 50A | Yes | Yes | $649–$699 |
| JuiceBox | 40 | 40A | Yes | Yes | $599–$639 |
| Grizzl-E | Classic | 40A | No | Yes | $399–$449 |
| Lectron | Level 2 Portable | 40A | No | Yes | $249–$299 |

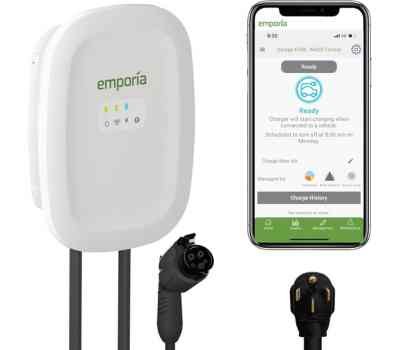

| Emporia | Smart EV Charger | 48A | Yes | Yes | $399–$479 |
Check breaker and outlet voltage (should be 240V)
Ensure plug fits fully into NEMA 14-50 outlet
Reset GFCI if your outlet has it
Usually indicates grounding or wiring error
Recheck wire connections and torque specs
Consult EVSE manual or contact support
Confirm EV settings on the vehicle side
Try another EV to isolate issue
Test cable resistance with multimeter
Here’s a simple chart for readers to understand total installation cost:
| Item | Estimated Cost |
|---|---|
| NEMA 14-50 Outlet Installation | $200 – $400 |
| EVSE Charger (NEMA Plug-in) | $399 – $699 |
| Mounting Hardware (Wall/Pad) | $50 – $120 |
| Pedestal Kit (if needed) | $200 – $400 |
| Electrician Labor | $300 – $600 |
| Total Estimate | $950 – $2,200 |
This range gives readers a real-world idea of costs, whether it’s DIY or professional.
Yes, if you’re comfortable working with 240V circuits and follow local code. Otherwise, hire a licensed electrician.
Use 6 AWG copper wire, rated for 75–90°C, especially for pedestal installs.
Yes, as long as it’s rated for outdoor use (NEMA 3R or better) and weather-sealed.
Yes, a back-to-back pedestal mount is designed exactly for that use.
Ground connections must use copper and follow torque guidelines (usually 38 in-lbs).
